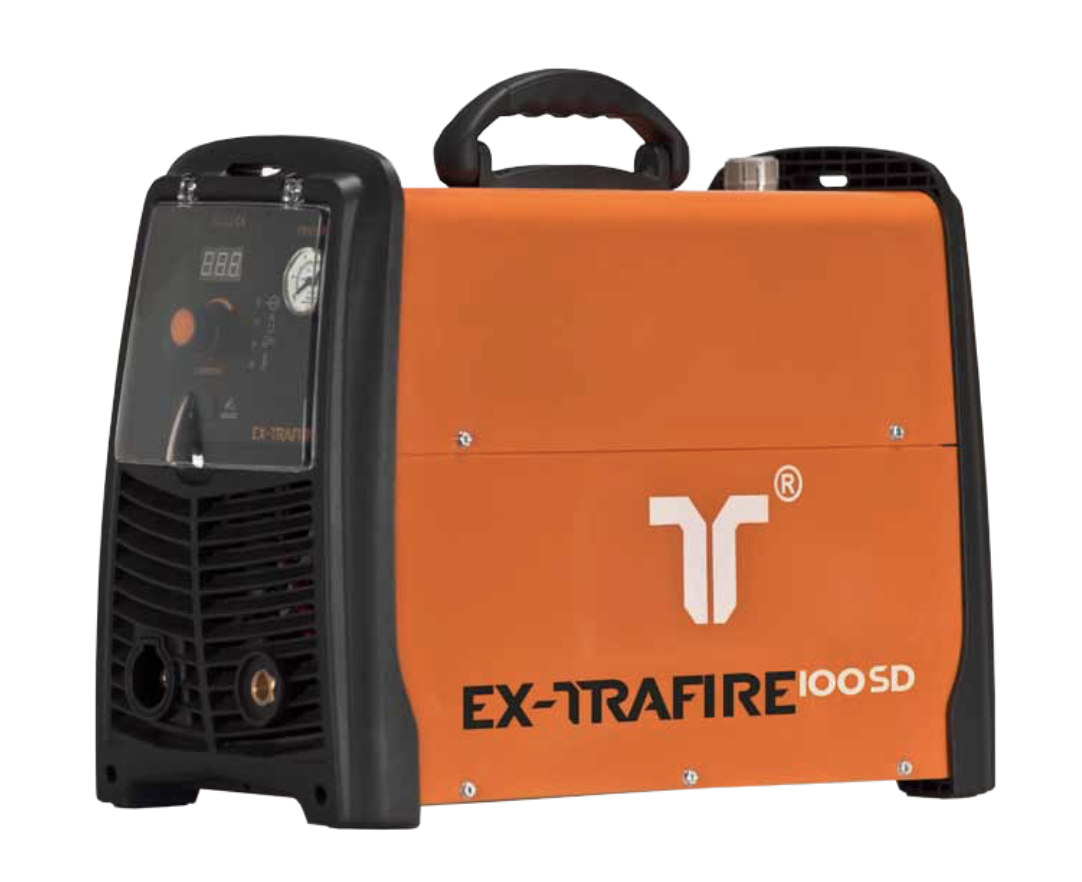

EX-TRAFIRE®100SD
- home
- products > EX-TRAFIRE®100SD
AMPS (A)
30–100
INPUT VOLTAGE (VAC)
400±15%
PLASMA GAS
COMPRESSED AIR
CERTIFICATION
CE, C-TICK, CCC
MODES
CUTTING / GOUGING
FREQUENCY (Hz)
50/60
MAXIMUM INPUT POWER (kVA)
20.7
OUTPUT VOLTAGE (VDC)
170 (EXTRA-BOOST 220V)
DUTY CYCLE @ 40 °C
50% @ 100A, 100% @ 80A
DIMENSION (L × H × w) MM
560 × 400 × 265
WEIGHT (kG)
24
RECOMMENDED CUTTING CAPACITY (MM)
35
SEVERANCE CUTTING CAPACITY (MM)
50
PIERCING CUTTING CAPACITY (MM)
25
AIR FLOW @ (LPM/BAR)
270 @ 5.5
MAXIMUM INPUT PRESSURE (BAR/PSI)
10/145
PROTECTION LEVEL
IP23S
INSULATION CLASS
H/F
CNC INTERFACE
YES
INDUSTRY 4.0
NO
TYPE OF HAND TORCH
FHT-EX®105H
